Project: 5 Bar Linkage
Reason for Building: Personal Enjoyment

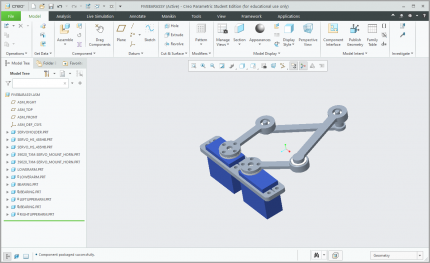

Description: I saw a video of the plot clock on youtube which uses a similar 2 degree of freedom system to write the time every minute. I decided to figure out the inverse kinematics for the system and designed the parts in Creo to learn a new CAD software. This system utilizes servos that I had lying around as well as bearings for smooth and low friction motion. The UI is a single square pad that directs the manipulator where to move.
Skills: Creo Parametric 6, 3D Printing, Arduino, Electronics, UI Design, Bluetooth on Android
